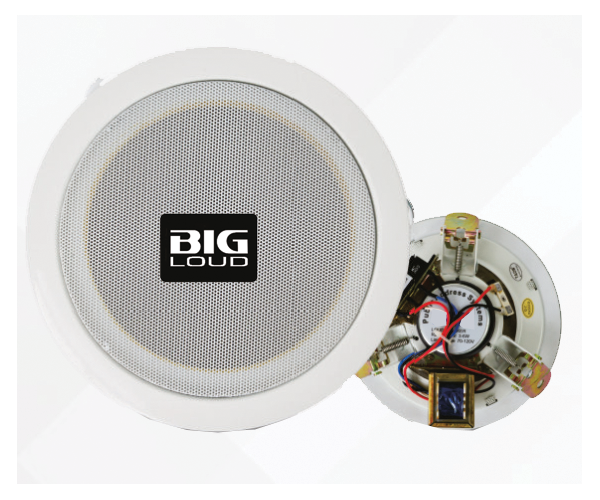

CSX-1005T Ceiling Speaker
The CSX-1005T is a high-performance ceiling speaker designed for clear, consistent sound across commercial and residential environments. With multiple power taps and wide frequency coverage, it delivers excellent audio for announcements, background music, and public address systems.
Technical Specifications
| Input Power: | 8W RMS |
| Power Taps on 100v: | 2/4/8w |
| Sensitivity: | 91 db |
| Frequency Response: | 90-16000 Hz |
| Loud Speaker: | 120 mm |
| Hole Dimensions: | 150 mm |
| Dimensions: | 181 x 50 mm |

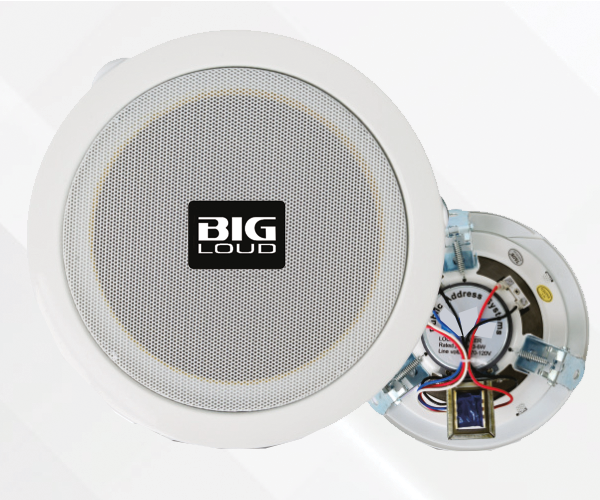

CSX-1006T Ceiling Speaker
The CSX-1006T is a premium-quality ceiling speaker engineered to deliver clear, balanced audio for commercial and indoor public environments. With flexible power tap options and a wide frequency range, it ensures excellent speech intelligibility and musical clarity.
Technical Specifications
| Input Power: | 10W RMS |
| Power Taps on 100v: | 2.5/5/10w |
| Sensitivity: | 91 db |
| Frequency Response: | 90-16000 Hz |
| Loud Speaker: | 158 mm |
| Hole Dimensions: | 166 mm |
| Dimensions: | 198 x 55 mm |
CSX-1007T
The CSX-1007T ceiling speaker is designed for clear voice projection and smooth background music performance in commercial spaces. With selectable power taps and wide frequency coverage, it is ideal for offices, restaurants, retail stores, educational institutions, and public address installations.
Specifications
| Input Power: | 15W RMS |
| Power Taps on 100v: | 5W / 10W / 15W |
| Sensitivity: | 91 dB |
| Frequency Response: | 90 Hz – 16,000 Hz |
| Loud Speaker: | 135 mm |
| Hole Dimension: | 180 mm |
| Dimensions: | 218 × 80 mm |
OPERA-6
The OPERA-6 ceiling speaker is designed to deliver crystal-clear sound with powerful audio performance for commercial and residential installations. Ideal for background music, paging, and high-quality audio distribution across indoor environments.
Technical Specifications
| Power (RMS): | 10W/20W on 100v |
| Impedance: | 8 Ohms |
| Line Voltage: | 70V / 100V |
| Frequency Response: | 90Hz – 18KHz |
| Sensitivity (1W / 1m): | 86 dB |
| Woofer: | 5.25" (135mm) |
| Tweeter: | 0.5" (13mm) Mylar Dome |
| Cutout Dimensions: | 172mm |
| Dimensions : | $203 × 90mm |

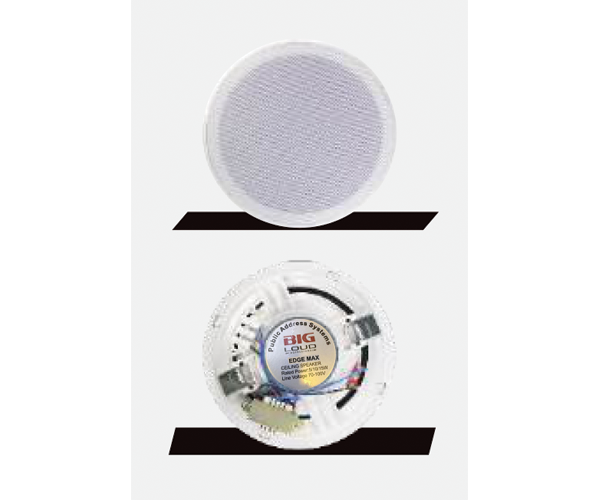

EDGE MAX
The EDGE MAX ceiling speaker delivers exceptional sound performance with a sleek and compact design. Engineered for a wide range of indoor audio applications including retail, hospitality, corporate, and public environments.
Specifications
| Power(RMS): | 5W/10W on 100v |
| Impedance: | 8 Ohms |
| Line Voltage: | 70V / 100V |
| Frequency Response: | 100Hz – 16KHz |
| Sensitivity (1W / 1m): | 91 dB |
| Speaker Unit: | 6" (158mm) |
| Cutout Dimensions: | 170mm |
| Overall Dimensions (Dia × Depth): | $188 × 78mm |

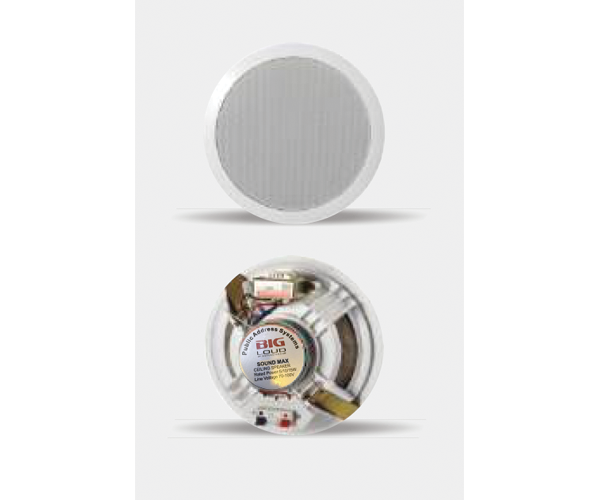

SOUND MAX
Designed for superior audio distribution, SOUND MAX delivers clear and crisp sound ideal for commercial and residential installations. Its compact build ensures seamless integration into any modern interior.
Technical Specifications
| Power (RMS): | 5W/10W |
| Impedance: | 8 Ohms |
| Line Voltage: | 70V / 100V |
| Frequency Response: | 90Hz – 16KHz |
| Sensitivity (1W / 1m): | 91 dB |
| Speaker Unit: | 6" (158mm) |
| Cutout Dimensions: | 166mm |
| Overall Dimensions (W*D*H): | 186*70mm |
